We manufacture a full range of catering
equipment from both grade 304 and 316 grade stainless
steel.
304, for normal temperatures and low acid
concentrations, and 316 for harsher environments. For
example 304 is used in cheese production, but where
salted ham is being prepared 316 is used. In ice cream
production 316 is specified because strong
anti-bacteriological cleaning and rinsing systems are
used.
|
Work
Tables
Standard Wall and
Centre Tables
|
Comprising of:
|
Stainless steel
table on welded
frame with
removable under
shelf. |
|
Dimensions: |
Standard
lengths or to
customers
requirements,
650mm wide x
900mm high. |
|
Supplied
with: |
Stainless steel
304 quality
1.5mm thick
worktop.
Stainless steel
430 quality
fully welded
30mm square
tubular
framework.
Stainless steel
304 quality
0.9mm thick
removable under
shelf.
Centre tables
have 50mm
turndowns all
edges.
Wall tables have
rear legs inset
100mm from wall
as standard. |
|
Options: |
Any width up
to 650mm can be
accommodated in
the standard
price.
Height can be
altered if
necessary.
Up-stands to
ends for wall
tables is a no
cost option.
Open under for
fridges, etc. if
required. |
|
Optional
Extras: |
Any table
lengths and
widths – POA
Extra under
shelves.
Castors.
Single drawers
and banks of
drawers.
Part under shelf
and part void to
under side.
Chamfered
corners.
Angled basket
runners.
Anti drip
moulding for
dumps tables.
Slim Jim &
scrapping ring
waste chutes.
Wash basins
welded in. |
|
|
|
|
Sink
Units

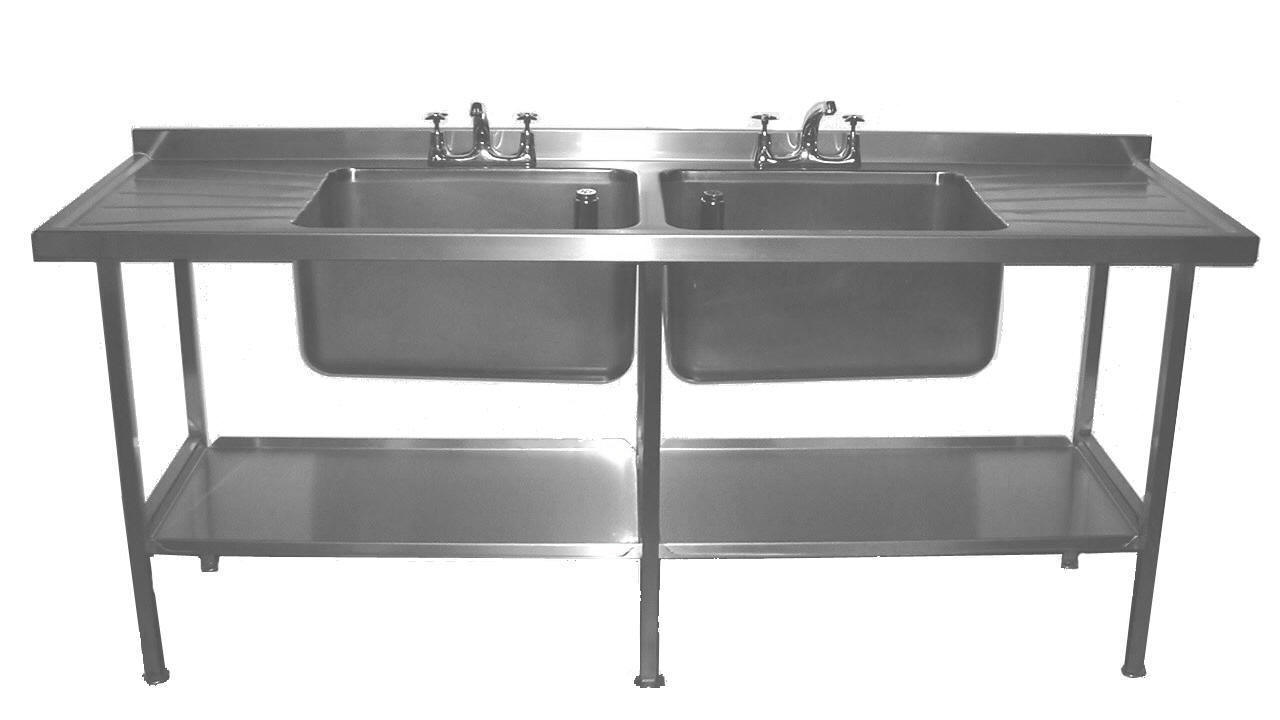

Single and
Double Bowl Sink Units
|
Comprising of:
|
Stainless steel
sink on frame
with shelf. |
|
Dimensions: |
Standard
lengths or to
customers
requirements x
650mm wide x
900mm high. |
|
Bowl
sizes: |
Various sizes
are available –
the most common
being:
600 x 450 x 250
or 300mm deep,
and
450 x 450 x 250
or 300mm deep.
|
|
Supplied
with: |
Stainless
steel 304
quality 1.5mm
thick top.
Stainless steel
bowl(s) 304
quality 1.0-1.2m
thick.
Stainless steel
430 quality
fully welded
30mm square
tubular
framework.
50mm up-stand to
rear.
Grooved drainer
1.1/2 “deep
seated waste
with stainless
steel
strainer/overflow
corner
standpipe. |
|
Options: |
Any width up
to 650mm can be
accommodated in
the standard
price.
Height can be
altered if
necessary.
Up-stands to
ends are a no
cast options.
Plain drainer.
Various bowl
sixes are
available.
Single or double
drainers
(dependant on
overall size). |
|
Optional
Extras: |
Taps –
various
available.
Widths above
650mm
Extra under
shelves (under
drainers) only).
Various sized
bowls to suit
individual
requirements –
in size and
depth.
Part under shelf
and part void to
under side.
Base cupboards
to underside.
Cut outs for
pipe work etc.
Chamfered
corners.
Angled of “L”
shaped unites.
Cantilevered
over shelves.
Bull nosed
fronts or
radiused top
edge fronts.
Slim Jim &
scrapping ring
waste chutes.
Wash basins
welded in.
Mobile sinks
with wall
mounted tap
landings and
tundish wastes. |
|
|
|
|

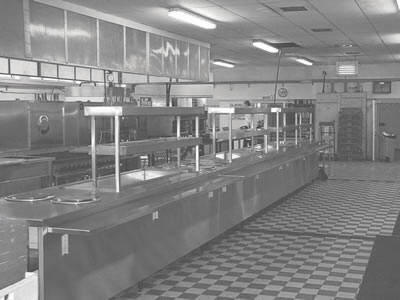

Hot
Cupboards & Gantries
Hot Cupboards
|
Comprising of:
|
Stainless steel
top on heated
cupboard with 2
internal
shelves. |
|
Dimensions: |
Standard
lengths from
600mm or to
customers
requirements, x
600mm wide
minimum x 900mm
high. |
|
Supplied
with: |
Electrical
supply only.
Rating/supply
Stainless steel
304 quality
1.5mm thick
worktop.
50mm up-stand to
rear, 50mm
turndowns front
and ends.
Mild steel fully
welded 30 x 30 x
5mm angle iron
framework.
Stainless steel
panelling 0.9mm
thick.
2 stainless
steel 304
quality 0.9mm
thick removable
shelves.
Control panel to
1 end.
Double skinned
sliding doors
(hinged p to
1000mm long).
Mounted on
adjustable legs
with 125mm gap
between floor
and cupboard.
Digital
temperature
readout. |
|
Options: |
Top turned
down all round.
Any width from
600mm to 762mm
can be
accommodated in
the standard
price.
Height can be
altered if
necessary.
Up-stands to
ends are a no
cost option. |
|
Optional
Extras: |
Dry or wet
well Bain Marie
top (minimum
1200mm long and
700mm front to
back).
Doors both
sides.
Mobile.
Push bar.
Colour coated
panels.
Digital
temperature
readout. |
| |
|
|
Gantries |
| |
Heated
gantries can be
supplied over
our hot
cupboards. |
|
Options: |
Single heated
gantry shining
onto worktop/bain
marie.
Single heated
gantry shining
onto plain
shelf.
2 tier heated
gantries – one
shining onto
shelf, one onto
worktop/bain
marie.
Dimmer switch
controls.
Sneeze screens. |
 |
|
|
|

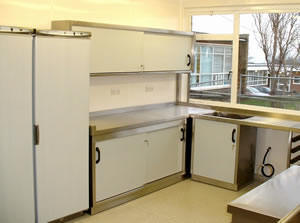

Cupboard Units
Base Cupboards
|
Comprising of:
|
Stainless steel
top on cupboard
with 2 shelves. |
|
Dimensions: |
Standard
lengths or to
customers
requirements, x
650mm wide x
900mm high. |
|
Supplied
with: |
Stainless steel
304 quality
1.5mm thick
worktop.
50mm up-stand to
rear, 50mm
turndowns front
and ends.
Stainless steel
430 quality
fully welded
30mm square
tubular
framework.
Stainless steel
panelling 0.9mm
thick.
2 stainless
steel 304
quality 0.9mm
thick removable
shelves.
Stainless steel
double skinned
doors (sliding
or hinged).
Toe recess on
cupboards to
floor. |
|
Options: |
Hinged doors
not recommended
on units longer
than 1200mm.
Sliding doors
not recommended
on units shorter
then 200mm.
Any width from
600 to 650mm can
be accommodated
in the standard
price.
Height can be
altered if
necessary.
Up-stands to
ends are a no
cost option.
The cupboard can
be mounted on
legs, open under
for cleaning
purposes. |
|
Optional
Extras:
|
Lockable doors.
Drawers and
banks of
drawers.
Colour coated
doors.
‘L’ shaped units
and combinations
of units, etc. |
|
|
|
|
Wall Cupboards
|
Comprising of:
|
Stainless steel
wall mounted
cupboard with 2
shelves. |
|
Dimensions: |
Standard
length or to
customers
requirements,
x300mm wide x
600mm high. |
|
Supplied
with: |
Stainless steel
304 quality
0.9mm thick
panels and 2
integral
shelves.
Double skinned
doors (sliding
or hinged). |
|
Options: |
Hinged doors
not recommended
on units longer
than 1200mm.
Sliding doors
not recommended
on units shorter
then 200mm.
|
|
Optional
Extras:
|
Lockable doors.
Colour coated
doors.
Off standard
dimensions. |
|
|
|
|
Tall Storage
Cupboards
|
Comprising of:
|
Cupboard carcase
with 4 full
depth fixed
internal shelves
and hinged door. |
|
Dimensions: |
Standard
width 500-1200mm
or to customers
own
requirements.
Standard depth
up to 600mm
deep.
Standard heights
are 1500, 1800
and 1950mm, or
to customers own
requirements. |
|
Supplied
with: |
|
|
Options: |
Units over
900mm wide have
2 hinged doors.
|
|
Optional
Extras:
|
Lockable doors.
Slide vent
louvers. |
|
|
|
|
Broom Cupboards
|
Comprising of:
|
Cupboard carcase
with 4 two
thirds depth
fixed internal
shelves and
hinged door.
Broom holder
pegs to back of
doors for broom
hanging. |
|
Dimensions: |
Standard
width 500-1200mm
or to customers
own
requirements.
Standard depth
up to 600mm
deep.
Standard heights
are 1500, 1800
and 1950mm, or
to customers own
requirements. |
|
Supplied
with: |
|
|
Options: |
Units over
900mm wide have
2 hinged doors. |
|
Optional
Extras:
|
Lockable doors.
Side vent
louvers. |
|
|
|
|
Specials
Various
specially
manufactured
cupboards are
available on
request.
Previous bespoke
cupboards
include amongst
others
instrument
cabinets with
glass doors and
shelves, and
vented food
storage
cupboards. |
|
|
|
|
|
