Hawk stainless steel sluice and work surface

    Click here for technical specifications ->

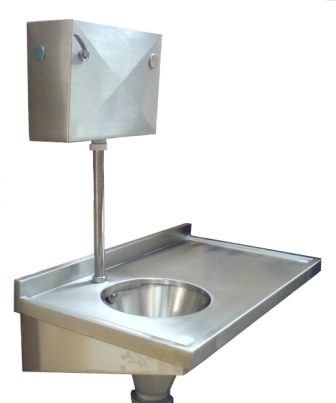

*Pictured unit has rear up-stand and exposed stainless steel cistern optional extras fitted*

    • Sluice hopper can be on the right or left hand side
• Standard overall size 1000 x 600 x 900 mm high
• The hopper diameter is 375 mm

Part No: HS64-?  (? = L or R indicating Left or Right handed hopper)

Hawk HTM64 Slop Hopper and Work Surface, manufactured from grade 304 stainless steel (1000mm L x 600mm W). Complete with plastic concealed cistern (add –TE to the part No: for top flush entry and surface mounted plastic cistern), a set of bearer brackets and 110mm plastic ‘P’ trap.

Optional Extras

Custom built units to suit a particular requirement, individual dimensions and specifications.

  • Stainless Steel front support legs with adjustable feet. (Add –FL to part No:)
  • Up-stand to back edge. (Add –RUS to part No:) F.O.C
  • Stainless Steel Cistern for surface mounting. (Add –SSC to part No:)
  • Top entry flush pipe connection (for surface mounted Cistern). (Add –TE to part No:) F.O.C
  • Tap hole for deck mounted monobloc tap. (Part No: Add  –TH to part No:) F.O.C
  • 110mm Stainless Steel ‘P’ or ‘S’ trap. (Part No: 110-SSPT ‘P’ or 110-SSST ‘S’)
  • Plastic ‘S’ trap. (Part No: 110-PST)
  • Wall mounted wrist/elbow lever action bib taps.
  • Wrist lever monobloc mixer tap to sluice.
  • Custom sized units, to customer requirements.
  • HTM63 Profile. P.O.A
