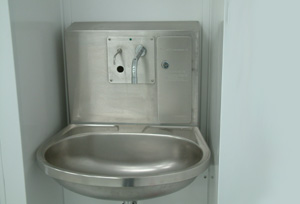

Osprey stainless steel hand Wash Station with no touch dispensing systems for both water and soap solutions

    Click here for technical specifications ->

• Hygienic no touch operation for dispensing soap and water
• Reliable to use
• Easy to maintain
• User friendly provides enhanced hygienic standards


Standard unit supplied as a complete assembly pre-wired and pre-plumbed ready for connecting to the hot and cold water and power supplies and to the waste water outlet.

Standard unit is supplied as a single station but multiple units can be provided if required. Manufactured in 304 grade stainless steel the back enclosure is combined with a high quality washbasin with a rounded front. The standard unit is supplied complete with a 38mm waste fitting, chrome plated bottle trap, sensor module, power pack, battery back up, low soap detector probe, service panel, lockable front opening door panel for the soap bottle and concealed wall mounting bracket.


Wave hand across the red sensor disc and water will be dispensed from the larger of the two nozzles to wet the hands first in line with correct hand washing procedures. To stop initial flow of water and dispense soap cup hand in front of the red sensor disc and below the smaller nozzle to activate the soap dispenser lowering the cupped hand when suffient soap has been delivered. Wave hand across the red sensor disc for water to be dispensed for the timed period. Repeat process if further water or soap needs to be dispensed. The sensor disc detects the presence of the hand at 60 mm. The timed supply of water is factory set for 21 seconds but can be easily adjusted for 14 or 7 seconds if required.

Low Soap Detection

If the centre of the red sensor disc is flashing then the soap bottle needs to be replaced. When low soap is detected the unit will only dispense four more times to prevent the soap tubes being emptied. Once a new soap bottle is fitted, dispensing will resume.

Green Power Light

If the green power light goes out then the power supply has failed and the unit is on battery back up, consult an engineer.

Sensor Module

Comprises a stainless steel front panel with a back box for recessed mounting into the back box enclosure.

The chrome plated spout for the water and a smaller stainless steel nozzle for the soap or antiseptic solutions are mounted into the front panel.

The soap nozzle is removable so that it can be cleaned and disinfected. A 25mm diameter dark red sensor disk is also located on the front panel, which glows red in the centre of the disc when activated.

The sensor module houses the spouts, sensor disc, soap pump, solenoid valve PCB and the low soap warning system. The sensor module is accessed from the front for ease of maintenance.

Service Panel

The removable service panels are located beneath the unit and concealed in the rear box section.

The service panel is easily lowered down from the unit for service and maintenance.

The service panel houses the power pack, battery back up and the thermostatic valve.

The wash station has its own sensor module, service panel and front opening, lockable soap door for ease of changing over bottles and positioning the low soap detector probe back into the replacement bottle.


The latest technology and easy to use. No touch infrared sensor control for both soap and water operations pre plumbed and pre wired ready for installation. Thermostatic controlled water. Lockable front opening door with clear operating instructions inscribed on the front of the door. Battery back up fitted as standard.


Connection to service panel (thermostatic control valve) for 2 x 1/2 hot and cold water supply. 1 x 1mm2 3 core mains flex for connection to 220/240 volt AC mains supply (via switch fused spur)

Adjust thermostatic valve to required temperature (normally factory set at 43 degrees). All the internal water and soap connections are pre-plumbed. The electrical 12 volt DC supply is also pre-connected internally.

Optional Extras

• Stainless steel under shield
