Available as three
• 750/800 mm (single)
1500/1600 mm (double)
• 2250/2400 mm (treble)
Low back 100mm rear up stand. Taps can be trough
mounted as above if required.
Special lengths up to 3000 mm can be custom made to order.

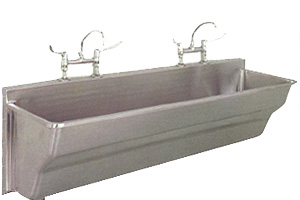

Manufactured as standard in 304 grade and 16 gauge Stainless
Steel, although units can be manufactured in 316 grade material
Designed with contoured anti splash fronts to reduce the risk
of back splashing the units also have both radiused internal
and external corners for ease of cleaning and for superior hygiene.
Standard units are supplied with the
appropriate number of chrome plated elbow lever action
mixer taps with single swivel nozzle, chrome plated 38
mm flush grated waste fitting, chrome plated bottle
trap, concealed wall mounting bracket and earthing
terminal, the waste water outlet can be either left or
With high splash back
Peregrine HB (high back) HTM64 Stainless Steel surgeons
scrub sinks available in three standard lengths as 750/800
mm (single) 1500/1600 mm (double) or 2250/2400 mm (treble) and
with an integral 360 mm high splash back.
With the high back option, units can be fitted with:
Infra red no-touch taps (complete with TMV3
thermostatic mixing valves per station).
Stabilet knee action thermostatic
valves with the tap spout being located
in the splash back.
Wall mounted chrome plated elbow lever action
mixer taps (fitted to splash back)
Optional Extras • All units can be supplied with an underneath cover skirt
• Stainless removable station divider can also be provided
