The valve is an electronically operated drop valve,
which replaces the traditional siphon and delivers a
precisely measured volume of water from the cistern to
sluice hopper or WC pan.
The valve and casing are both made
from high impact ABS and the valve itself has a 6 mm
neoprene facing for
an efficient, watertight fit and has a high resistance
to limescale. The infrared sensor activates when
user comes within 50 mm of sensor. More than one sensor
can be fitted to give the facility of dual flushing.
Can also be supplied with Touch Pad Switch if required.
Fitting to existing sluice
& WC’s cisterns: Retrofitting to an existing
installation is simple, using
standard fittings.
Tamper Resistant: The cistern containing the Flushvalve
can be remotely located, long stem sensor available for
cavity wall
Benefits
Reduced water consumption, easy to use, hygienic,
easy maintenance, flush valve and fits existing
and new cisterns.

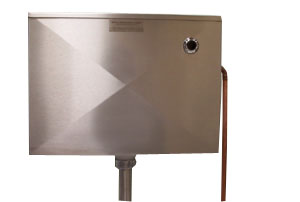

Cistern
Autoflush Flushvalve
Operation
Simply wave a hand over the sensor to activate
the electronic cistern valve.
Electronically operated,
the Flushvalve delivers a precisely measured volume
of water upon
activation. The timer can
be adjusted to any setting between
1 and 9 seconds, which each second representing 1 litre
of water.
The Flushvalve
is activated when the user’s
hand comes within 50 mm (touch pad
sensors
can be fitted
if required)
and a 35 second delay mechanism prevents
abuse by the user.
An electro-magnetic solenoid coil is central
to the operation of the Flushvalve.
Upon activation, an
electro-magnetic
field is created within the upper
part of the valve
body. This draws up a metal pin,
which instantly opens the
valve and releases, the water full
bore through the flush pipe into the sluice
hopper, WC or urinal.
At
the end of the
timed flushing
cycle, the electrical supply is cut
off thereby deactivating the solenoid and returning
the
valve to the closed
position. Further escape of water
is prevented
by the unique conical
design of the valve seating and atmospheric
pressure.
Optional Extras
• Dimensions of control box: 110
mm x 110 mm x 65 mm
•
Weight: 950 gms
• Electrical Supply: 12V DC from intergral transformer connected to 240AC
mains
• Connection: Via 1 ½ inch BSP fitting at the base of the Body
Also available with 2 inch fitting at the base for European connections.
• Cable: Low voltage screened cable between operating button and timing
control.
