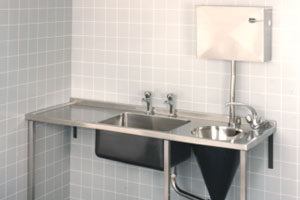

Pelican (Imperial type) manual stainless steel combination sluice, sink and work surface



    Click here for technical specifications ->

    • Sluice hopper can be on the right or left hand side
• overall size 1600 x 530 x 900 mm high
• the bowl size is 500 x 400 x 250 mm deep
• Hopper diameter is 335 mm




Standard top entry unit is supplied as for an exposed supply. Up stand to the rear and anti drip edges to the front and both sides. Comes complete with a stainless steel side entry cistern, stainless steel flush pipe, chrome plated wrist lever mono bloc mixer tap with single swivel spout to the sluice hopper, pair of chrome plated wrist lever high neck pillar taps to the sink bowl, 38 mm unslotted waste fitting, with upstand tube chrome plated bottle trap, three sets of bearers and front support legs with adjustable feet and a stainless steel 75 mm multi adaptable P trap.

Custom Built units to suit a particular requirement, individual dimensions or specifications. For example up stands to the ends of the units, special lengths, widths or shapes floor and wall cabinets or combinations of units, rear flush pipe connection for concealed cistern.

Optional Extras

• Stainless steel 75 mm multi adaptable S trap
• Stainless steel 75 to 110 mm adaptor
• Stainless steel 110 mm multi adaptable P or S traps
• Plastic Cistern for economic top entry or for concealed duct-mounting locations.
• Victory toggle action flush valve in place of the cistern
• Bottle washing kit factory fitted in the hopper and with a wall mounted on/off valve
• Wrist lever chrome plated mono bloc mixer tap with retractable hand spray
• Inset Models
